GB7201 - Body Charger fitness

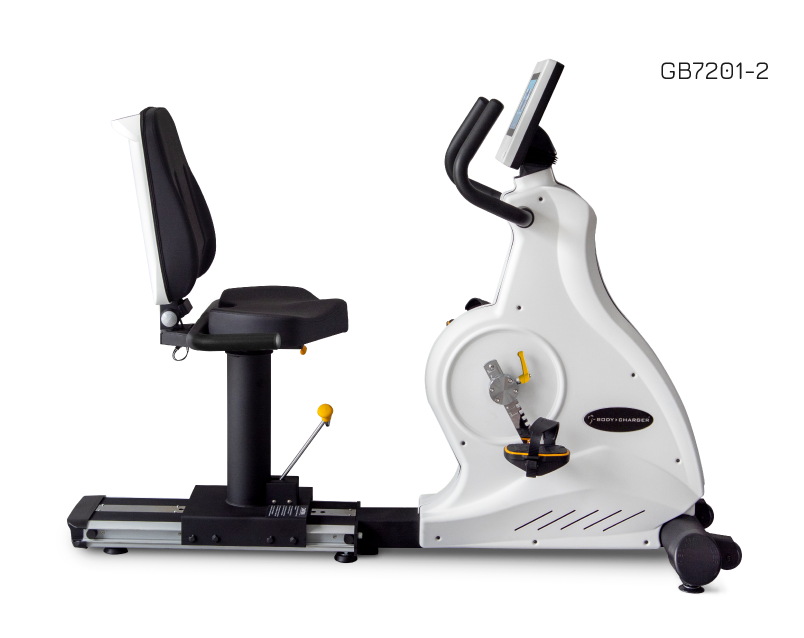

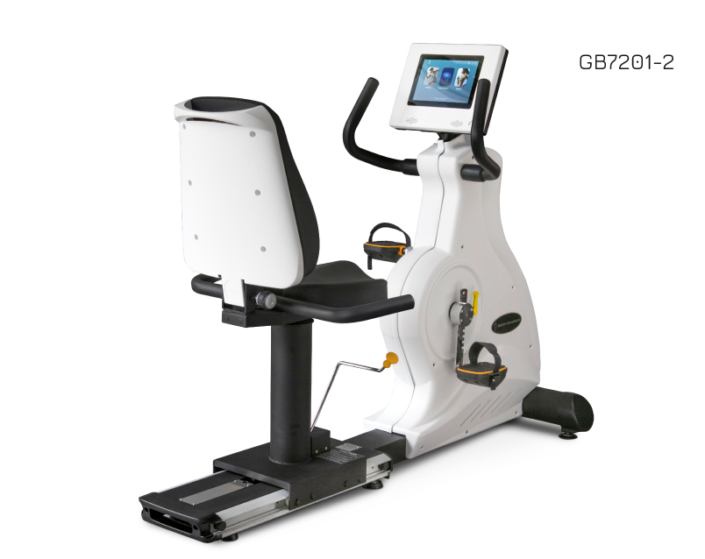

REHAB RECUMBENT BIKE

This wheelchair-accessible recumbent bike is a great tool for rehab and exercise for people with physical limitations stemming with knee and hip ROM limitations.
The Rehab Rehabilitation Bike GB7201 has been engineered for every single workout to be lower watt starting with highly effective therapy for recovery. The seat and pedal crank adjustments are numbered individuals can document Rehab Recumbent Bike set up using the indexed seat distance and crank adjustments for you exercise or rehabilitation session.

COMPATIBLE:

REHAB RECUMBENT BIKE

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console

Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

STANDARD CONSOLE

9 INCH LCD Console

It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime .

ALWAYS THE RIGHT SETTING

Thanks to the adjustability of cranks to allow for optimal force application at different limb length.
The cranks are adjustable in a range of 62 – 188 mm, in steps of 18 mm. This option will be supplied as the standard cranks.

ALWAYS THE RIGHT SETTING

GREAT WORKOUTS FOR EACH PEOPLE

With this option, the access to Rehab Recumbent Bike is fully removable chair, for easy access of wheelchairs.

GREAT WORKOUTS FOR EACH PEOPLE

With this option, the access to Rehab Recumbent Bike is fully removable chair, for easy access of wheelchairs.

MULTI-USERS’ REQUIRE

This fit-hearted chair mechanism offers the best experience than ordinary ones in the market. Powered by multi-adjustability, its tile, swivel, fore/aft specific position pushes the boundaries for a Rehab Recumbent Bike.

MULTI-USERS’ REQUIRE

Rehab Recumbent Bike-Deluxe Seat in Height Adjustment

PREFECT TAILORED TO YOU

Everybody is different. For special required, like wheelchair exercisers, Body Charger offers Deluxe Seat with multiple adjustments, including up/down, forward/backward, swivels, and reclines.

By adjusting the height of the Deluxe Seat along the vertical continuum, to the height necessary to complete the task, the beneficiary increases the biomechanical advantage of the lower extremities exercise.

PREFECT TAILORED TO YOU

Everybody is different. For special required, like wheelchair exercisers, Body Charger offers Deluxe Seat with multiple adjustments, including up/down, forward/backward, swivels, and reclines.

PUT YOUR CONFIDENT FIRST

The comfortable frame shape with its low step-through allows the users at health clubs, and senior living and physical therapy centers for a comfortable getting on and off the exercise bike: just get on and start pedalling!

PUT YOUR CONFIDENT FIRST

INDIVIDUAL WORKOUT MODE

Different workout modes for beginners or experts always offer the right amount of intensity, tailored to the personal performance level and different user groups. The extreme low start-up load makes this Rehab Recumbent Bike perfectly suitable for many different applications. The standard control unit shows multiple workout parameters and users can determine their specific default setting and start-up menu.

INDIVIDUAL WORKOUT MODE

SPECIFICATIONS

FEATURES

Bi-Directional	●
Low Watts Starting	●
Total Body Training	–
Independent System ( Upper/ Lower)	–
Low Step-Through Design	●
Seat Design	20″ Oversized Seat
Swivel Seat Function	360°
Reclining Seat Adjustment	3 Levels/ 12°
Seat Adjustment	14, Fully Horizontal Adjustment
Removable Seat Function	●
Adjustable Upper Crank	–
Adjustable Lower Crank	8 Levels
Handlebar Design	Ergo-Grip Rotating Handlebar with Anti-Slip Surface
Pedal Design	WideRide™ Pedal with Adjustable Pedal Strap
Wheels for Easy Mobility	●
Heart Rate	Built-in Heart Rate Monitor
Wheelchair Accessible	●
With Accessory Holder on Smart Console	–
Energy Saving Mode	●
Certificated	CE

STANDARD CONSOLE

Display Type	9″ LCD
Exercise Programs	20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1
Display Feedback	Time, Level, Pulse, Distance, Calories, RPM / SPM, Watts, METs, Speed
Screen Operational	Capacitance Touchable
USB Port	●, Export Workout Data, Software Upgrade and Charging
Quick Start	●
Pause Function	●
Multi-Language	–
Entertainment System	–
Bluetooth Module BT4.2 (FTMS)	*, Kinomap/ Zwift App
Wireless	–
NFC	–
Built-in Heart Rate Monitor (Bluetooth)	Embedded
Headphone Plug	–
HDMI	–

SMART CONSOLE

Display Type	10.1″ TFT LCD
Exercise Programs	16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games
Display Feedback	Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed
Screen Operational	Touch Screen
USB Port	●, Export Workout Data, Software Upgrade and Charging
Quick Start	●
Pause Function	●
Multi-Language	EN, ZH-TW, ZH-CN, JP
Entertainment System	●
Bluetooth Module BT4.2 (FTMS)	*, Kinomap/ Swift App
Wireless	●
NFC	●
Built-in Heart Rate Monitor (Bluetooth)	Embedded
Headphone Plug	●
HDMI	●

RESISTANCE SYSTEM

Operation System	EMS System (Electromagnetic)
Resistance Levels	32 Levels (Standard Console) 36 Levels (Smart Console)
Power Requirements	Input: 100 – 240 VAC ~ 50/60Hz, 1.5A Max Output: DC30V-2.0A

TECH SPEC.

Max. User Weight	226 kg / 500 lbs.
N.W.	107 kg / 236 lbs.
G.W.	116 kg / 255.5 lbs.
Overall Dimensions (L x W x H)	174 x 62 x 133 cm / 68.5” x 24.5″ x 52.5″

PACKING DETAILS

Container loading 1 x 20″	18 pcs
Container loading 1 x 40″	38 pcs
Carton Dimensions (L x W x H)	176.5 x 65.5 x 109 cm / 69.5″ x 25.5″ x 43″

ACCESSORY

GA001 RF Safety Retractable Seat Belt	▲
GA003 RF Assistive Hand Grip Gloves	–
GA004 RF Adjustable Lateral Calf Support Set	–
GA008 RF Orthopedic Wide Rehab Pedal	–
GA0010 RF Arm Rest	▲
GA0011 RF Deluxe Seat	▲
GA0016 RF Adjustable Crank Set	– (Standarized)
GA0017 RF BT Package for Kinomap/Zwift App-Smart Console	▲
GA0018 RF BT Package for Kinomap/Zwift App-Standard Console	▲

● Standard / ─ Not offered / ＊ Bluetooth module sold separately/ ▲ Compatible, accessories sold separately
