Recumbent Cross Trainer is for older adults exercise and physical therapy.

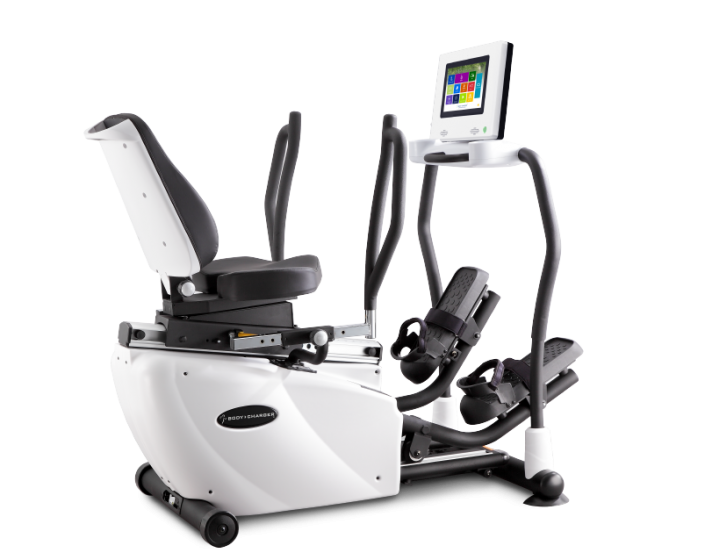

RECUMBENT CROSS TRAINER PRO

GB7006

It’s with smooth, stride movement for total body exercise in both directions. With the tractional training that can perform aerobic exercise of the whole body. The product is designed and performance with safe in high load.

COMPATIBLE:

TOTAL BODY TRAINER PRO

GB7006

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console

Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

Body Charger Smart Console｜10.1” TFT LCD｜touch screen

STANDARD CONSOLE

9 INCH LCD Console

It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime .

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

THE POWER OF AN HAND

Assistive Hand Grips help rehabilitation, senior or wheelchair persons use the GB7006 Recumbent Cross Trainer Pro, for sitting and standing up easily.

THE POWER OF AN HAND

Assistive Hand Grips help rehabilitation, senior or wheelchair persons use the GB7006 Recumbent Cross Trainer Pro, for sitting and standing up easily.

BIGGER . SAFEST

Optional Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

BIGGER . SAFEST

Optional Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

ENHANCING THE PERFORMANCE

Multi-position Ergo Handles and fully Adjustable Seat offer comfortable position for exercising your total body.

ENHANCING THE PERFORMANCE

Multi-position Ergo Handles and fully adjustable seat offers comfortable position for exercising your total body.

SPECIFICATIONS

FEATURES

Bi-Directional	●
Low Watts Starting	●
Total Body Training	●
Independent Stepping Motion	–
Low Step-Through Design	–
Seat Design	20″ Oversized Seat
Swivel Seat Function	180°
Reclining Seat Adjustment	3 Levels/ 12°
Seat Adjustment	14, Fully Horizontal Adjustment
Removable Seat Function	–
Handlebar Adjustment	5 Levels
Adjustable Console Angle	●
Handlebar Design	Easy-Grip Handlebar with Anti-Slip Surface
Pedal Design	Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup
Wheels for Easy Mobility	●
Wheelchair Accessible	–
Energy Saving Mode	●
Certificated	CE

STANDARD CONSOLE

Display Type	9″ White Backlit LCD
Exercise Programs	20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1
Display Feedback	Time, Level, Pulse, Distance, Calories, RPM/ SPM, Watts, METs, Speed
Compatible Apps	Optional, Kinomap/Zwift App
Capacitance Touchable Keypad	●
USB Port	●, Export Workout Data, Software Upgrade and Charging
Quick Start	●
Pause Function	●
Multi-Language	–
Entertainment System	–
Bluetooth BT 4.2 (FTMS)*	Optional, required for App
Wireless	–
NFC	–
Built-in Heart Rate Monitor (5K)	Embedded
Built-in Heart Rate Monitor (Bluetooth)	–
Headphone Plug	–
RS232 Port	–

SMART CONSOLE

Display Type	10.1″ TFT IPS Touch Screen
Exercise Programs	16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games
Display Feedback	Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed
Compatible Apps	Optional, Kinomap/Zwift App
Capacitance Touchable Keypad	–
USB Port	●, Export Workout Data, Software Upgrade and Charging
Quick Start	●
Pause Function	●
Multi-Language	EN, ZH-TW, ZH-CN, JP
Entertainment System	●
Bluetooth BT 4.2 (FTMS)*	Optional, required for App
Wireless	●
NFC	●
Built-in Heart Rate Monitor (5K)	Embedded
Built-in Heart Rate Monitor (Bluetooth)	Embedded
Headphone Plug	●
RS232 Port	●

RESISTANCE SYSTEM

Operation System	A. EMS System (Electromagnetic) B. DX System (Self-Generator Power)
Resistance Levels	32 Levels (Standard Console) 36 Levels (Smart Console)
Power Requirements	Input: 100 – 240 VAC ~ 50/60Hz, 1.5A Max Output: DC30V-2.0A

TECH SPEC.

Max. User Weight	181 kg / 400 lbs.
N.W.	115 kg / 253 lbs.
G.W.	124 kg / 273 lbs.
Overall Dimensions (L x W x H)	156 x 100 x 138 cm / 61.5” x 39.5″ x 54″

PACKING DETAILS

Container loading 1 x 20″	30 pcs
Container loading 1 x 40″	63 pcs
Carton Dimensions (L x W x H)	143 x 85 x 70 cm / 56″ x 33.5″ x 27.5″

ACCESSORY

GA001RF Safety Retractable Seat Belt	●
GA002RF Wireless Chest Belt	●
GA003RF Assistive Hand Grip Gloves	●
GA004RF Adjustable Lateral Calf Support Set	●
GA006RF Workplace Accessory-Square Tube	–
GA007RF EZ Accessory	–
GA008RF Orthopedic Wide Rehab Pedal	–
GA009RF Fitness Tracker	●
GA0010RF Arm Rest	–
GA0011RF Deluxe Seat	–

● Standard / ─ Not offered / ＊ Bluetooth module sold separately
