RECUMBENT IEStep

GB7016

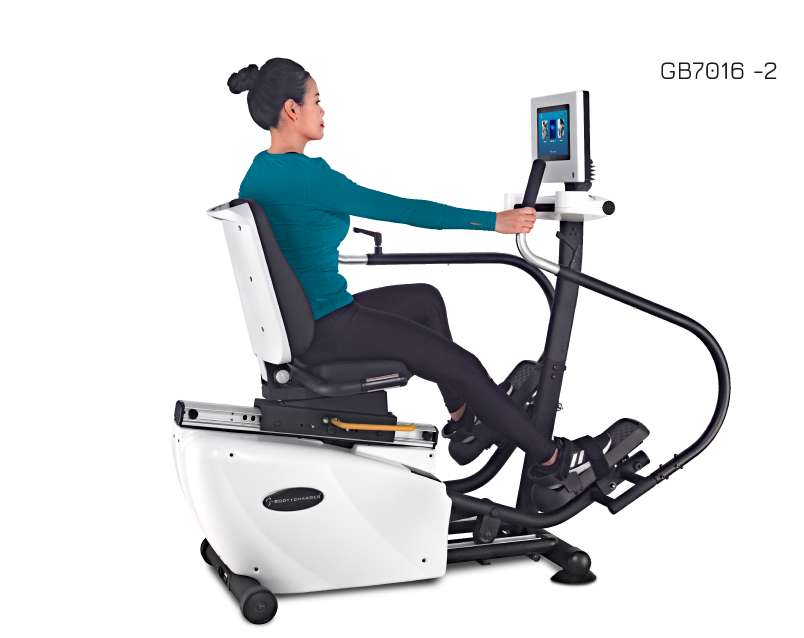

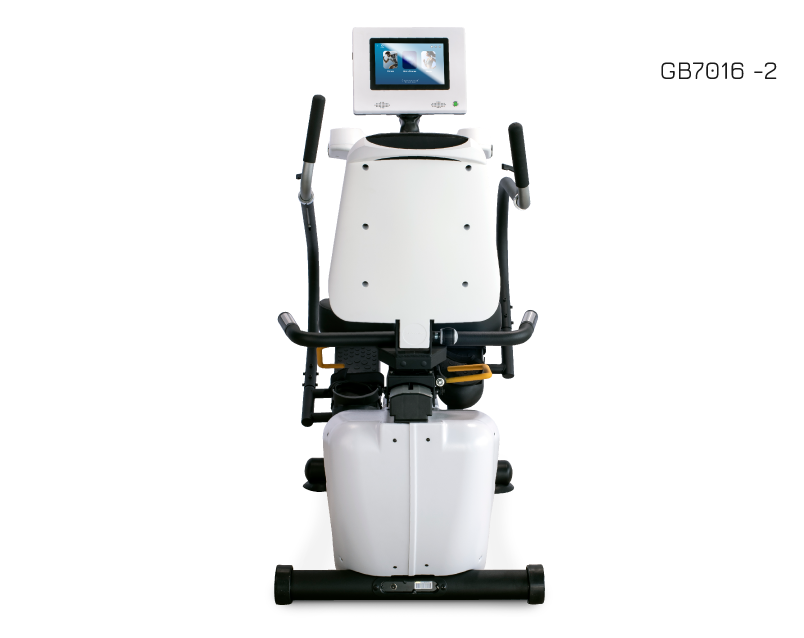

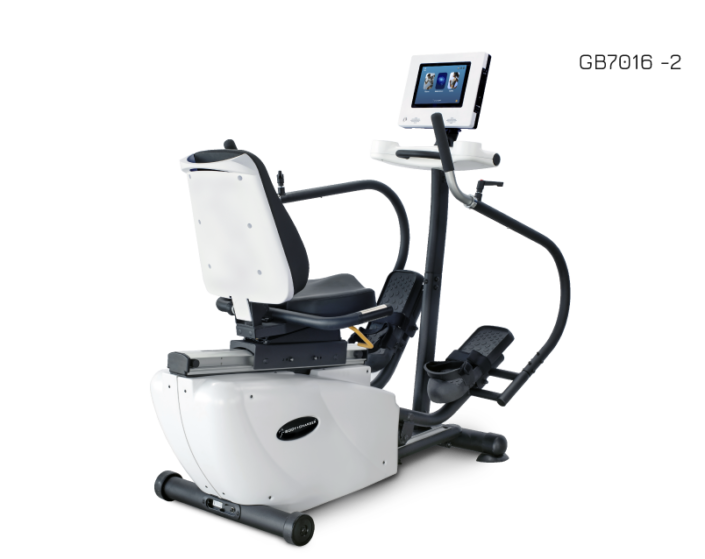

Body Charger GB7016 Recumbent IEStep, is a side-to-side recumbent ipsilateral cross trainer. Utilization of older persons allows for increasing gait balance and body coordination.

COMPATIBLE:

RECUMBENT IEStep

GB7016

Body Charger GB7016 Recumbent IEStep, is a side-to-side recumbent ipsilateral cross trainer. Utilization of older persons allows for increasing gait balance and body coordination.

COMPATIBLE:

ENJOY THE VIEW

SMART CONSOLE

10.1 INCH TFT LCD Console

Body Charger all cardio products feature a user orientation technologiesthat make our products more humanity, versatile and interactive.

STANDARD CONSOLE

9 INCH LCD Console

It includes workout calendar that can save with USB, which enables each user to store past exercise data at anytime .

BEING SMOOHT IS QUIETER

GB7016 Recumbent IEStep with Aluminum Rails offers a smooth, quiet, and effective exercise experience.

BEING SMOOHT IS QUIETER

GB7016 Recumbent IEStep with Aluminum Rails offers a smooth, quiet, and effective exercise experience.

CHALLENGE YOUR BODY

Ipsilateral Movement, Side to Side Motion, is a unique way to challenge your body, toning the different muscle groups that help promote better body balance and coordination.

CHALLENGE YOUR BODY

Ipsilateral Movement, Side to Side Motion, is a unique way to challenge your body, toning the different muscle groups that help promote better body balance and coordination.

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

QUALITY COMES IN TWO

Bi-Directional Exercise allows the user exercise in both the forward and reverse directions to train the difference muscle group you want.

YOUR FINEST VINTAGE ON SEAT

180° Swivel Seat features a comfortable, oversized seat and it’seasier for the elderly and rehabilitation users to ingress/egress.

YOUR FINEST VINTAGE ON SEAT

180° Swivel Seat features a comfortable, oversized seat and it’seasier for the user to ingress/egress.

BIGGER . SAFEST

Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

BIGGER . SAFEST

Orthopedic Foot and Heel Support Pedal reduces the risk of injury, and increasing support to weak joints.

SPECIFICATIONS

Bi-Directional ●
Low Watts Starting ●
Total Body Training ●
Independent Stepping Motion
 –
Low Step-Through Design ●
Seat Design 20″ Oversized Seat
Swivel Seat Function 180°
Reclining Seat Adjustment 3 Levels / 12°
Seat Adjustment 14, Fully Horizontal Adjustment
Removable Seat Function –
Handlebar Adjustment 10 Levels
Adjustable Console Angle ●
Handlebar Design Easy-Grip Handlebar with Anti-Slip Surface
Pedal Design Orthopedic Rehab Pedal with Neoprene Supportive Heel Cup
Wheels for Easy Mobility ●
Wheelchair Accessible –
With Accessory Holder ●
Energy Saving Mode ●
Certificated CE
Display Type 9″ White Backlit LCD
Exercise Programs 20, Warm Up, Manual, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC (65%, 85%), Constant Power, Isokinetic, Goal (Calories, Distance), Recovery, User 1
Display Feedback Time, Level, Pulse, Distance, Calories, RPM / SPM, Watts, METs, Speed
Compatible Apps Optional, Kinomap/Zwift App
Capacitance Touchable Keypad ●
USB Port ●, Export Workout Data, Software Upgrade and Charging
Quick Start ●
Pause Function ●
Multi-Language –
Entertainment System –
Bluetooth BT 4.2 (FTMS)* Optional, required for App
Wireless –
NFC –
Built-in Heart Rate Monitor (5K) Embedded
Built-in Heart Rate Monitor (Bluetooth) –
Headphone Plug –
RS232 Port –
Display Type 10.1″ TFT IPS Touch Screen
Exercise Programs 16, Quick Start, Hill, Interval, Goal (Time, Calories, Distance, Steps), Virtual Reality, HRC (60%, 80%, Target HR), Fitness Test, Custom, Isokinetic, Constant Power, Brain Games
Display Feedback Time, Level, Pulse, Distance, Calories, METs / Watt, RPM / Speed
Compatible Apps Optional, Kinomap/Zwift App
Capacitance Touchable Keypad –
USB Port ●, Export Workout Data, Software Upgrade and Charging
Quick Start ●
Pause Function ●
Multi-Language EN, ZH-TW, ZH-CN, JP
Entertainment System ●
Bluetooth BT 4.2 (FTMS)* Optional, required for App
Wireless ●
NFC ●
Built-in Heart Rate Monitor (5K) Embedded
Built-in Heart Rate Monitor (Bluetooth) Embedded
Headphone Plug ●
RS232 Port ●
Operation System EMS System
(Electromagnetic)
Resistance Levels 32 Levels
(Standard Console)
36 Levels
(Smart Console)
Power Requirements Input: 100 – 240 VAC
~ 50/60Hz, 1.5A Max
Output: DC30V-2.0A
Max. User Weight 181 kg / 400 lbs.
N.W. 103 kg / 169 lbs.
G.W. 110 kg / 198 lbs.
Overall Dimensions
(L x W x H)		 178.5 x 67 x 150 cm
/ 70” x 26″ x 59″
Container loading 1 x 20″ 30 pcs
Container loading 1 x 40″ 63 pcs
Carton Dimensions
(L x W x H)		 143 x 85 x 70 cm
/ 56″ x 33.5″ x 27.5″
GA001RF
Safety Retractable Seat Belt		 ●
GA002RF
Wireless Chest Belt		 ●
GA003RF
Assistive Hand Grip Gloves		 ●
GA004RF
Adjustable Lateral Calf Support Set		 ●
GA006RF
Workplace Accessory-Square Tube		 –
GA007RF
EZ Accessory		 –
GA008RF
Orthopedic Wide Rehab Pedal		 –
GA009RF
Fitness Tracker		 ●
GA0010RF
Arm Rest		 ●
GA0011RF
Deluxe Seat		 –

● Standard / ─ Not offered / ＊ Bluetooth module sold separately
